Clay Paky Aleda K20

Clay Paky Aleda K20

£180.00

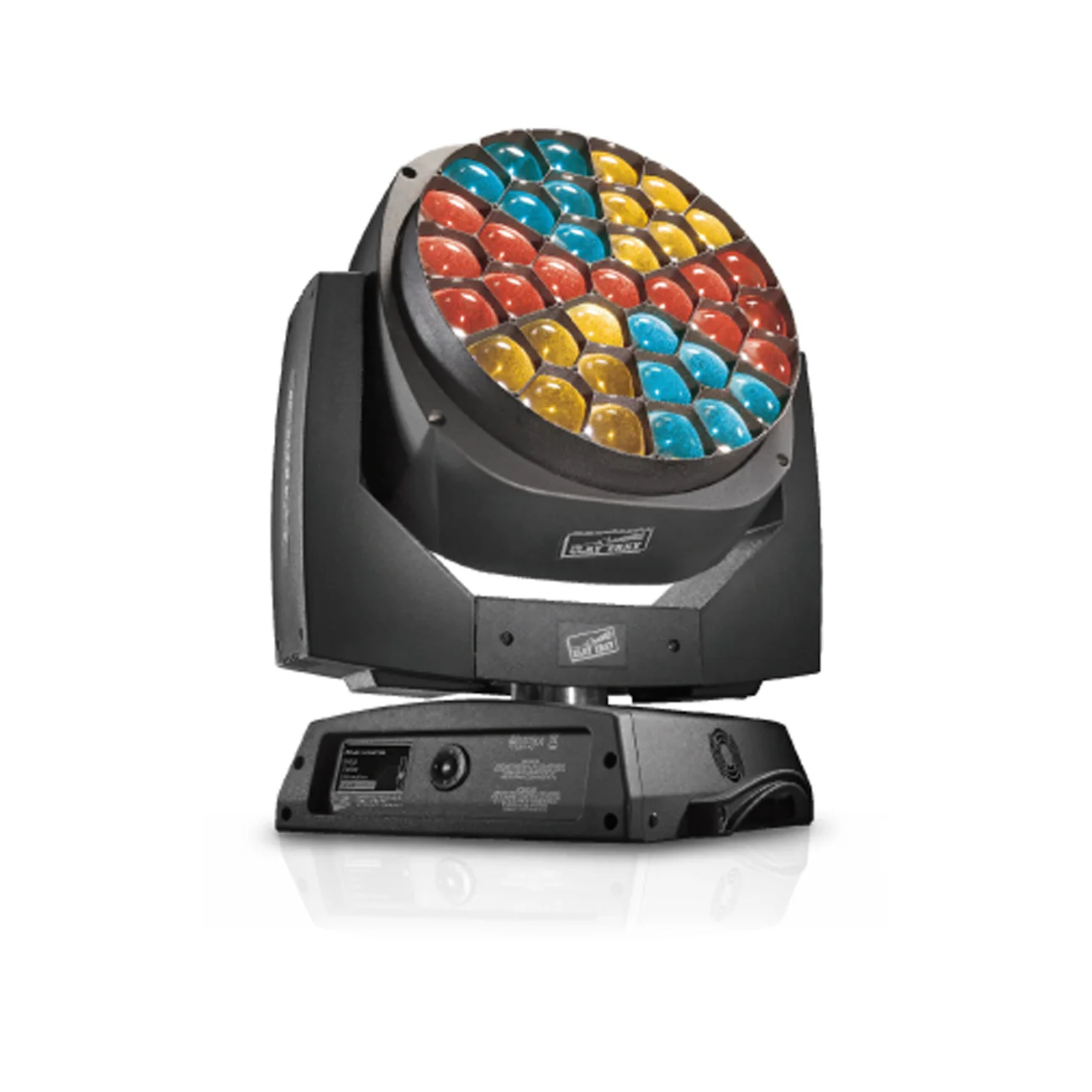

A.LEDA WASH K20 is the model at the top of the A.LEDA Series, the first professional Clay Paky fixtures to use LEDs as light sources. It offers a valid alternative to discharge lamp washlights, adding all the benefits of LED technology: low energy consumption, long light source life, small size, light weight and robustness.
A.Leda Wash K.20 is fitted with multicolor RGBW LEDs that produce a full range of vivid colors as well as excellent shades of white. It is also equipped with a motorised and fully controllable 14°-70°.
Each color of each LED may be controlled separately: this unique feature not only allows you to create an endless range of color variations, but also to use each LED of the array as a pixel in order to draw all kinds of graphic images that change dynamically both in shape and color.
To ease operation, the light has a library of pre-programmed graphic effects, which operators may customise by changing each parameter: intensity of each color, speed of change, etc.

Clay Paky Aledo K20 Manual

All prices shown are list prices, for a 1 week hire period. All of our trade customers are eligible for discount. Get in touch with us to receive an individually tailored quote.

Add To Cart

POWER SUPPLIES
100-240V 50/60Hz

INPUT POWER
750VA

LIGHT SOURCE
37 Osram Ostar RGBW LEDs
LED Nominal Wattage: 15W
LED Average Life: 50,000 h

OPTICS
4°-60° Electronic Zoom Range

EFFECTS SECTION
Three operating modes: wash, beam, FX (Kaleido effects)
Bi-directional Rotating Front Lens
Digital Wash-Beam Framing effect
Beam edge softening control (in Wash mode)
Pixel Patterning Macros with enhanced control
0-100% linear electronic dimmer
Adjustable speed stop/strobe effect, with instantaneous blackout
Dedicated channel for color temperature setting
White CT Emulation 2500-8000K
RGBW auto-tuning to lamp CT Emulation
Tungsten Lamp Emulation
Slow Strobe: 1 flash/sec; Fast Strobe: 25 flash/sec


CONTROL AND PROGRAMMING
Control channels: 21 in standard mode
DMX protocol signal: USITT DMX 512
Art-Net / RDM
Display: Graphic LCD backlit b/w Display
Pan/Tilt Resolution: 16 bit
Dimmer Resolution: 16 bit
Movement control: vectorial
DMX signal connection: 3 and 5 pole XLR input and output
Software upload through DMX input


ELECTRONICS

Long-life auto-charging buffer battery
Preset color and graphic effect macros
Function reset controllable from a central control unit
Menu-driven internal self-test function
Ethernet ready with RJ45 socket
Display: backlit black-and-white graphic LCD display
Electronic check-up of every single parameter with error alarm
DMX level monitoring on each channel
Automatic internal data transmission error diagnostics
Firmware upgrade even when the unit is not connected to the power supply
Firmware transfer from one light to another
